Deebii guutuu ykn 100% store credit argattu. Deebiin kaardii bitannoo keessan irratti deebifama. Tajaajila geessuu fi kaffaltii hin deebifamu. Tajaajila geessuu dabalataa yeroo pakii dhiyaate hin deebifamu. Isin kaffaltii kana kaffaltu, nutis hin deebifnu, yoo bitannoo deebi'e nuu wajjiin.Yeroo kennaa deebii argine, email ergina. Deebii ykn jijjiirama keessan mirkanaa'uu ykn mirkanaa'uu diduu keessan beeksisna.Yoo rakkoo deebii qabdu, nuu qunnamtii. service@roymall.com ykn Whatsapp: +8619359849471Specifications:
1. 2V to 6V operation
2. "On" resistance: 70 Ohms @ 4.5V
3. 6ns break-before-make @ 4.5V
4. Wide operating temperature range: -50u2103 to 125u2103
Features:

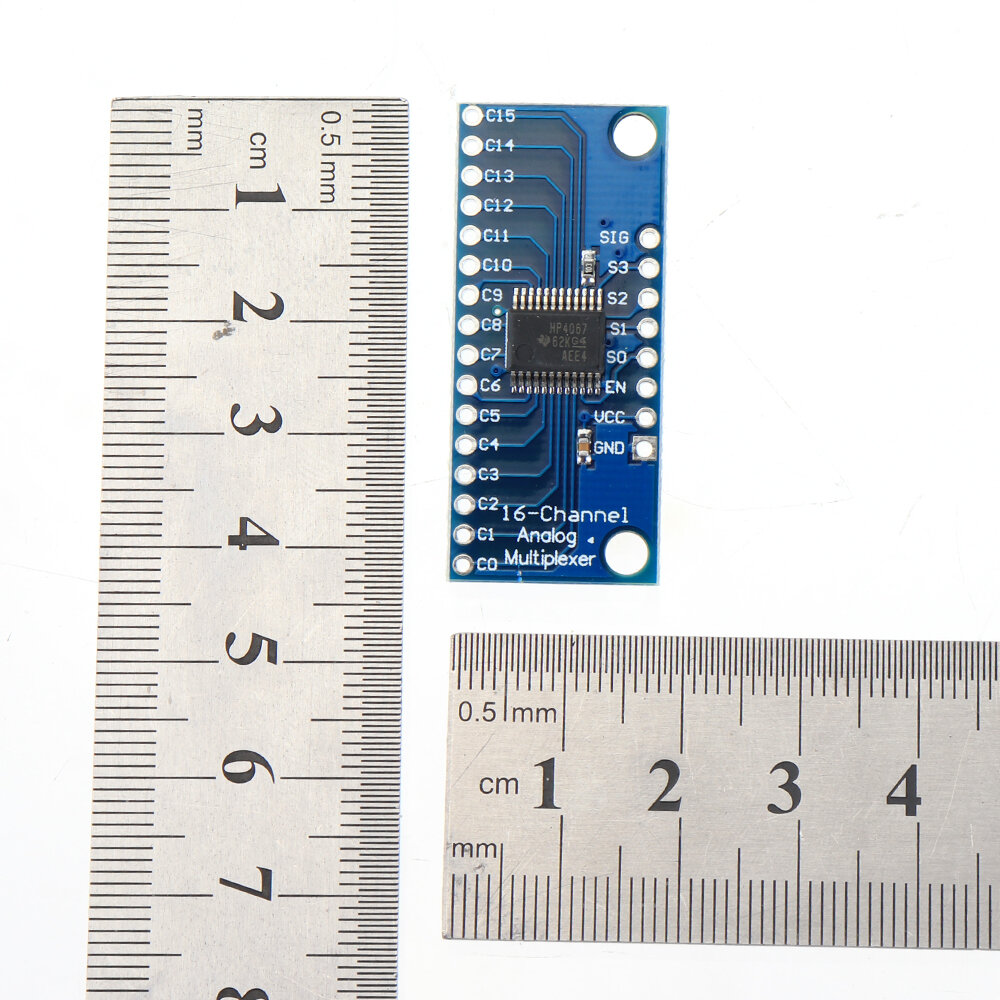

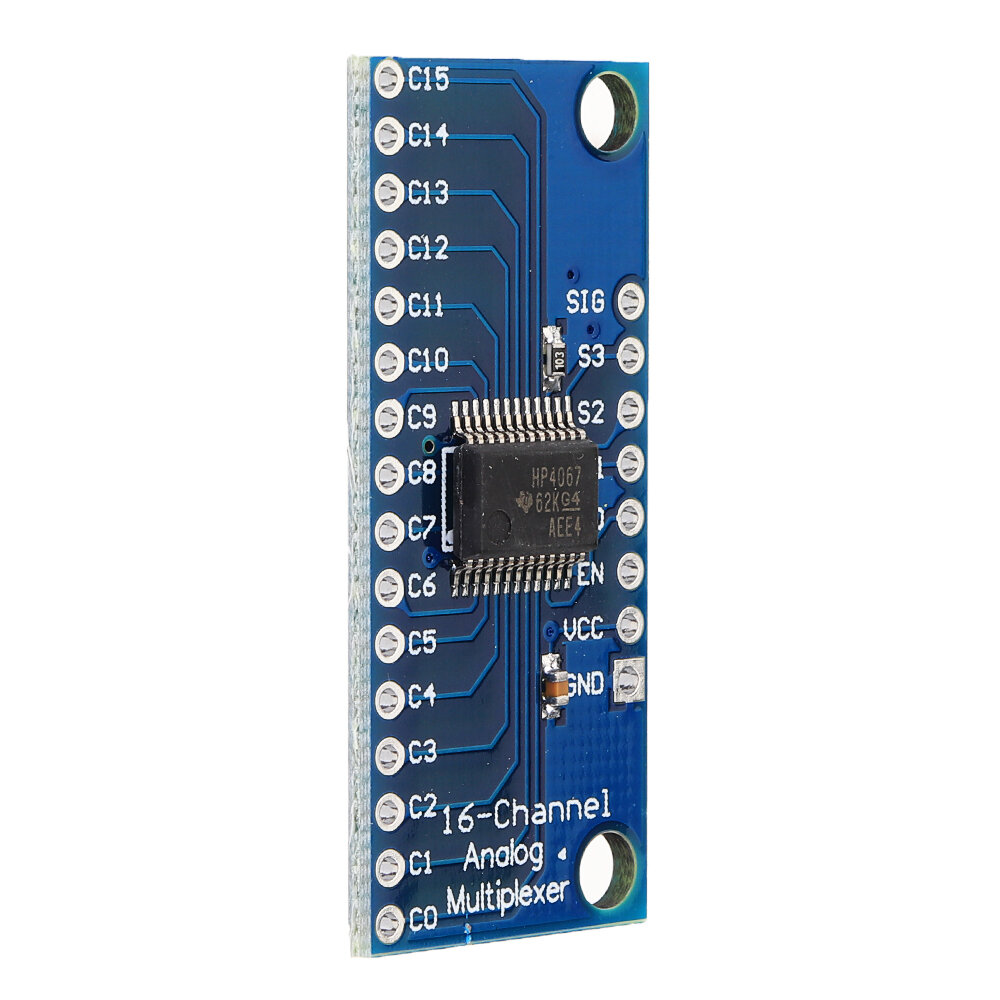

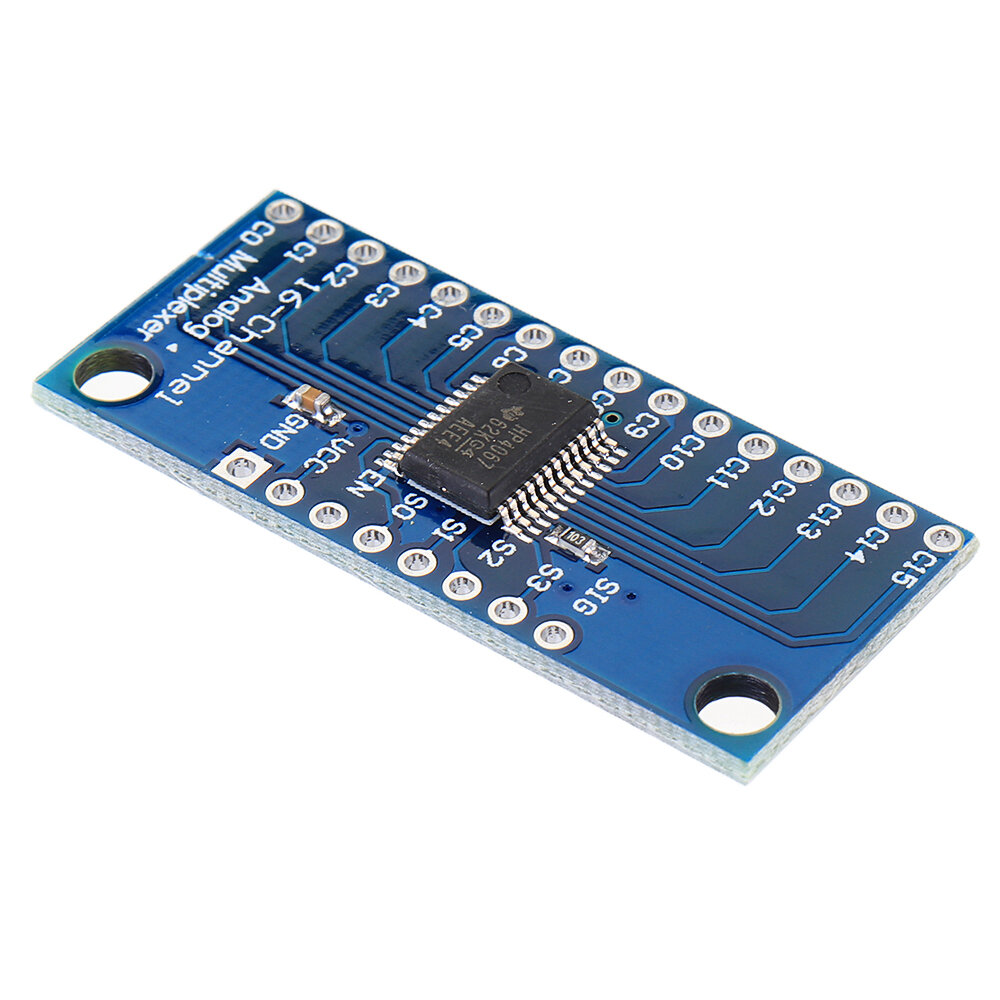

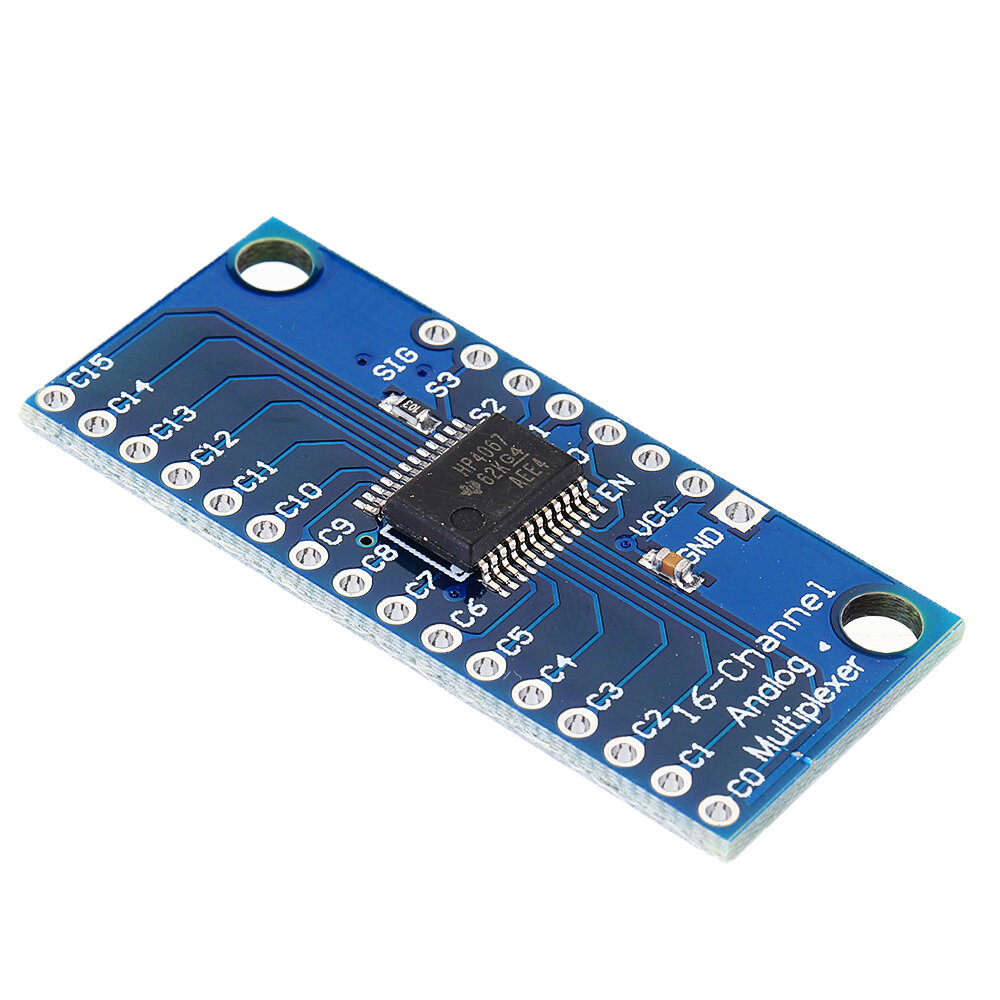

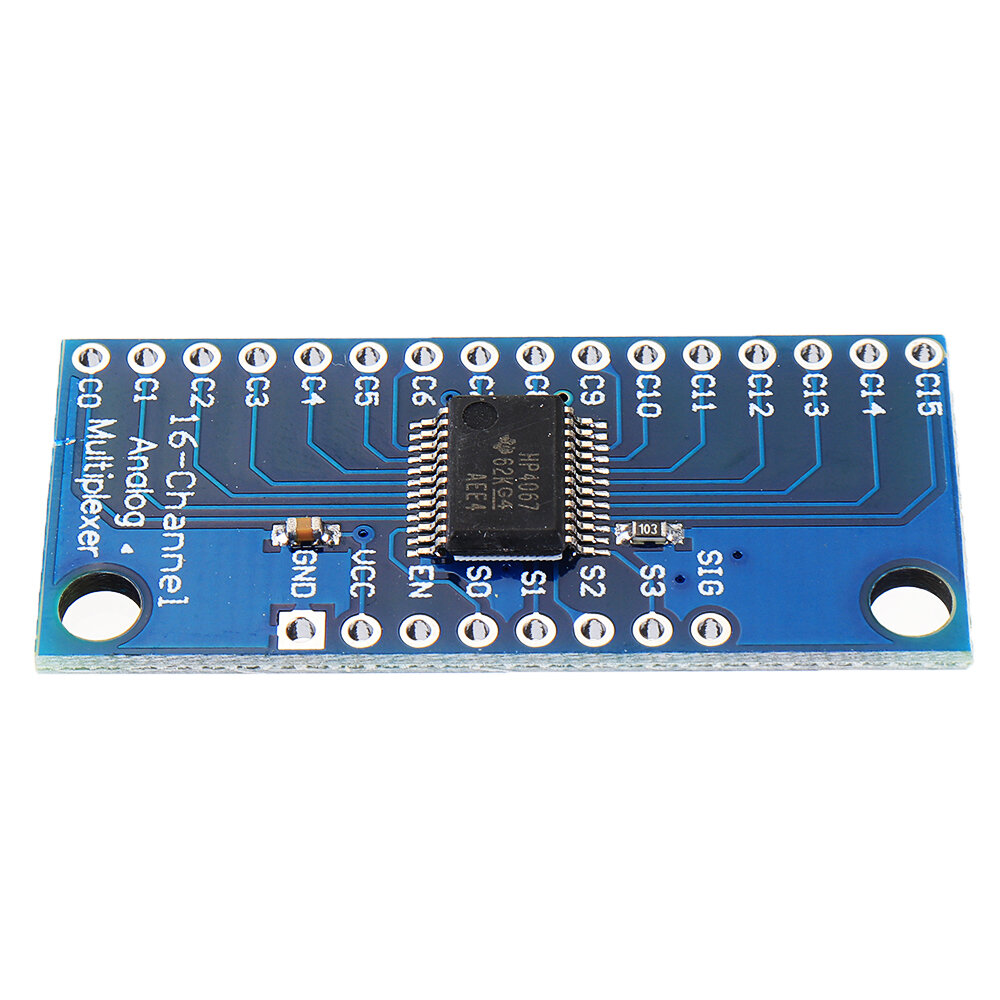

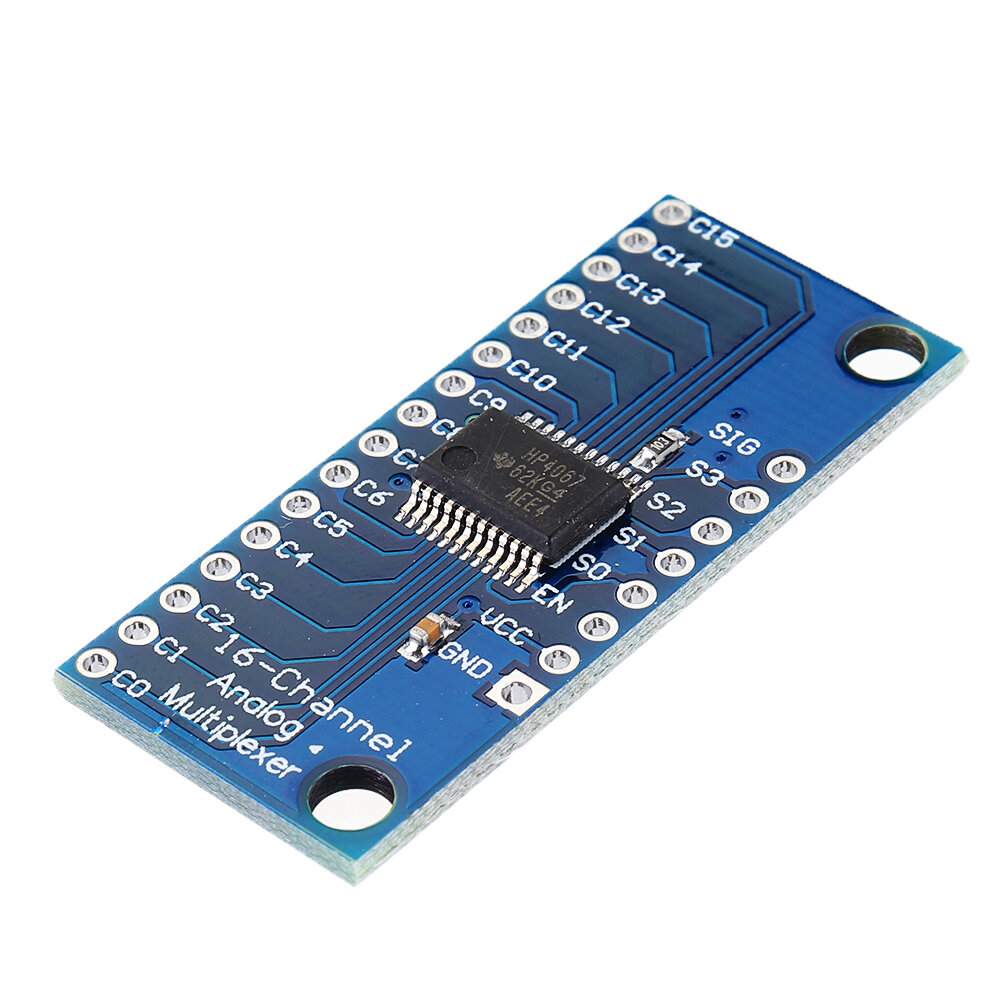

- This is a break board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067.
- This chip is like a rotary switch - it internally routes the common pin to one of 16 channel pins (CHANxx).
- It works with both digital and analog signals (the voltage can"t be higher than VCC),and the connections function in either direction.
- To control it, connect 4 digital outputs to the chip"s address select pins (S0-S3),and send it the binary address of the channel you want.
- This allows you to connect up to 16 sensors to your system using only 5 pins!
- You can use it to pipe TTL-level serial data to or from multiple devices.
For example, you could use it to connect the TX pins of 16 devices to one RX pin on your microcontroller.
You can then select any one of those 16 devices to listen to.
If you want two-way communications, you can add a second board to route your microcontroller"s TX line to 16 device"s RX lines.
By using multiple boards, you can create similar arrangements for I2C, SPI, etc.
The internal switches are bidirectional, support voltages between ground and VCC, have low "on" resistance and low "off" leakage, and to prevent crosstalk, perform "break-before-make" switching.
The board also breaks out the chip"s "enable" pin, which when driven high, will completely disconnect the common pin (all switches "off").
Package Included:
3 x CD74HC4067 16-Channel Analog Digital Multiplexer
