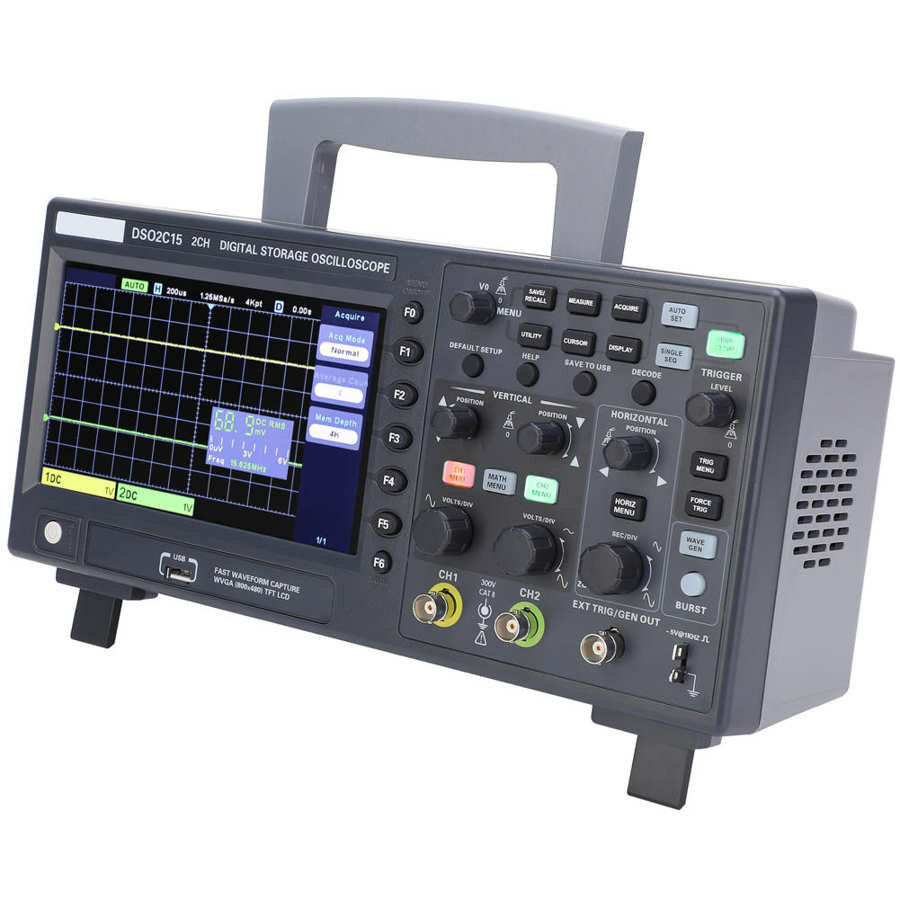

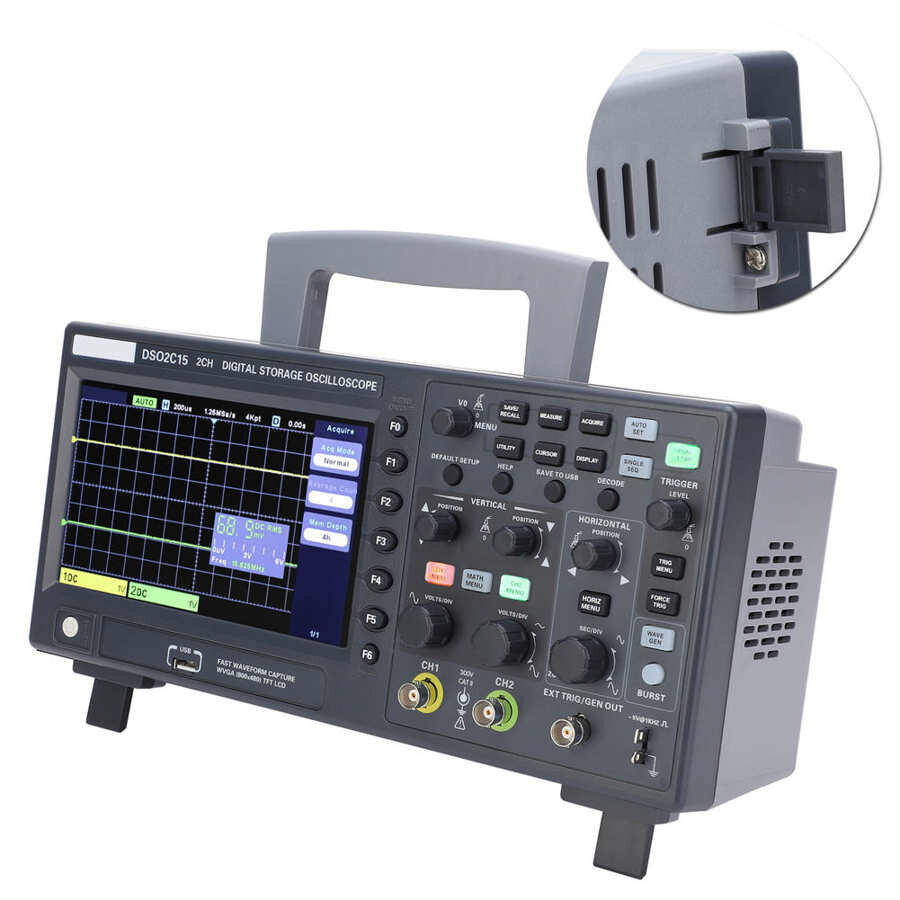

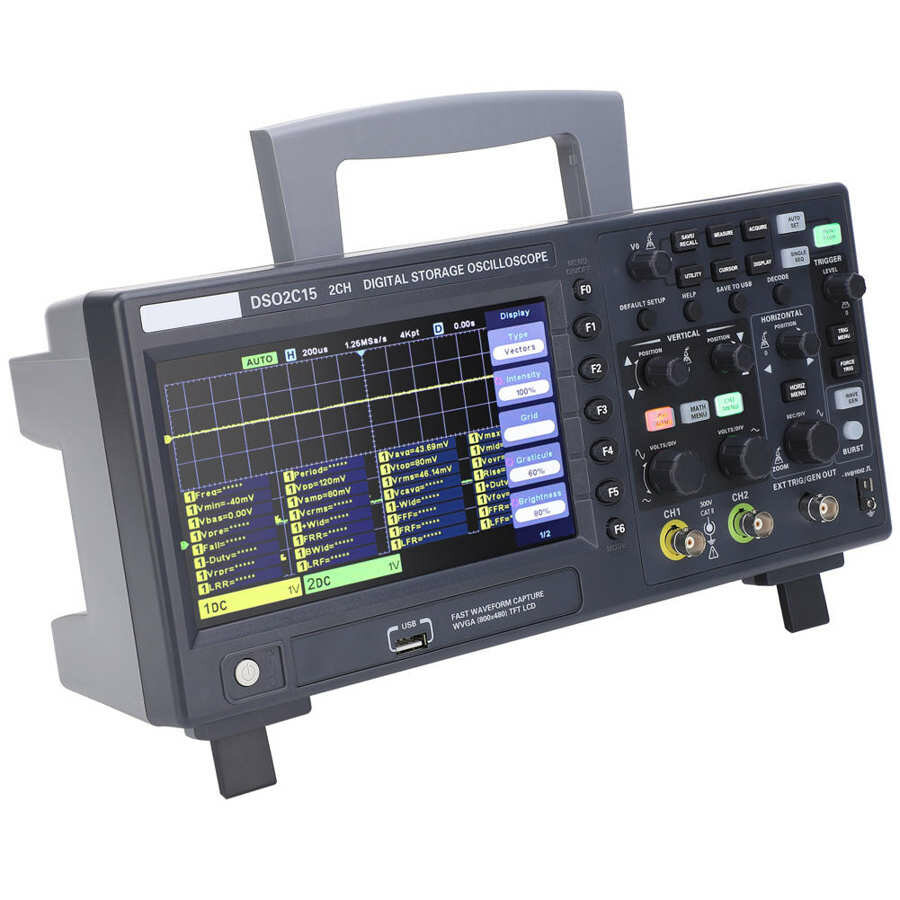

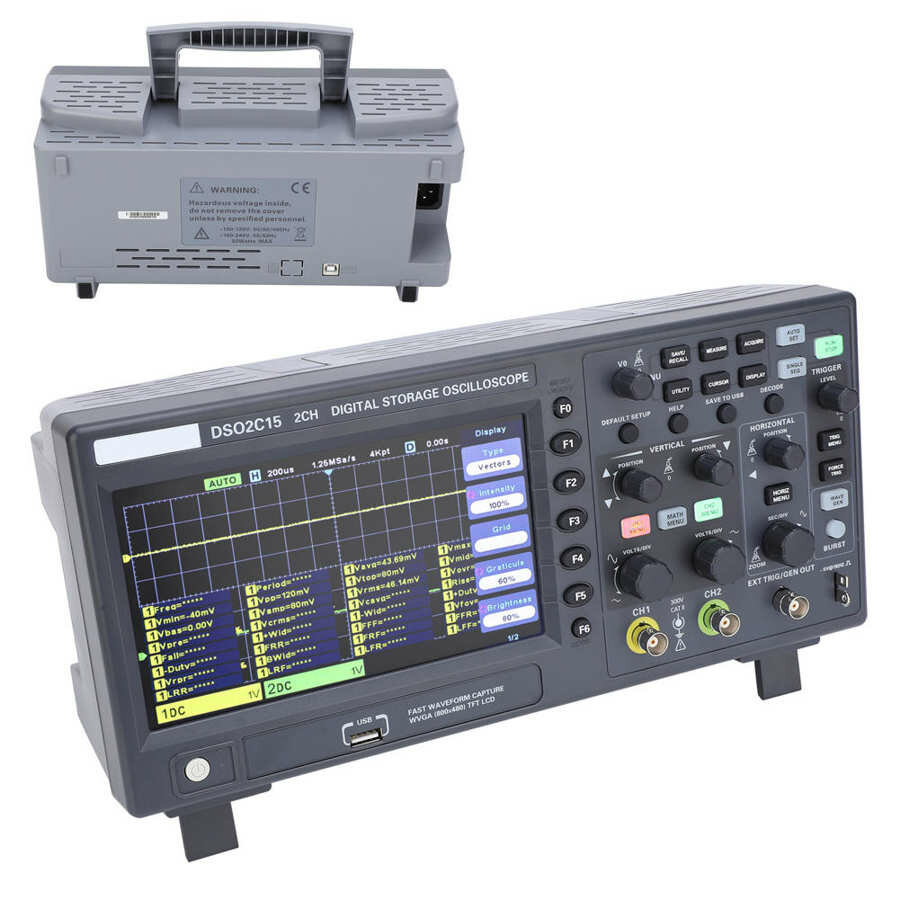

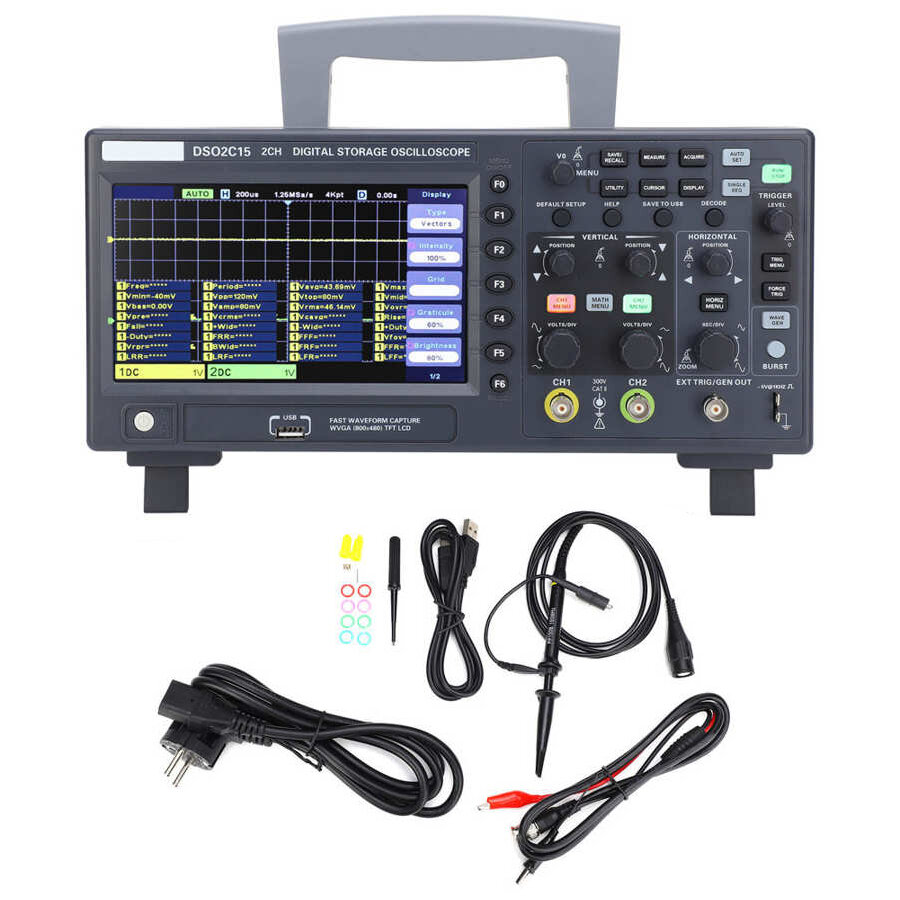

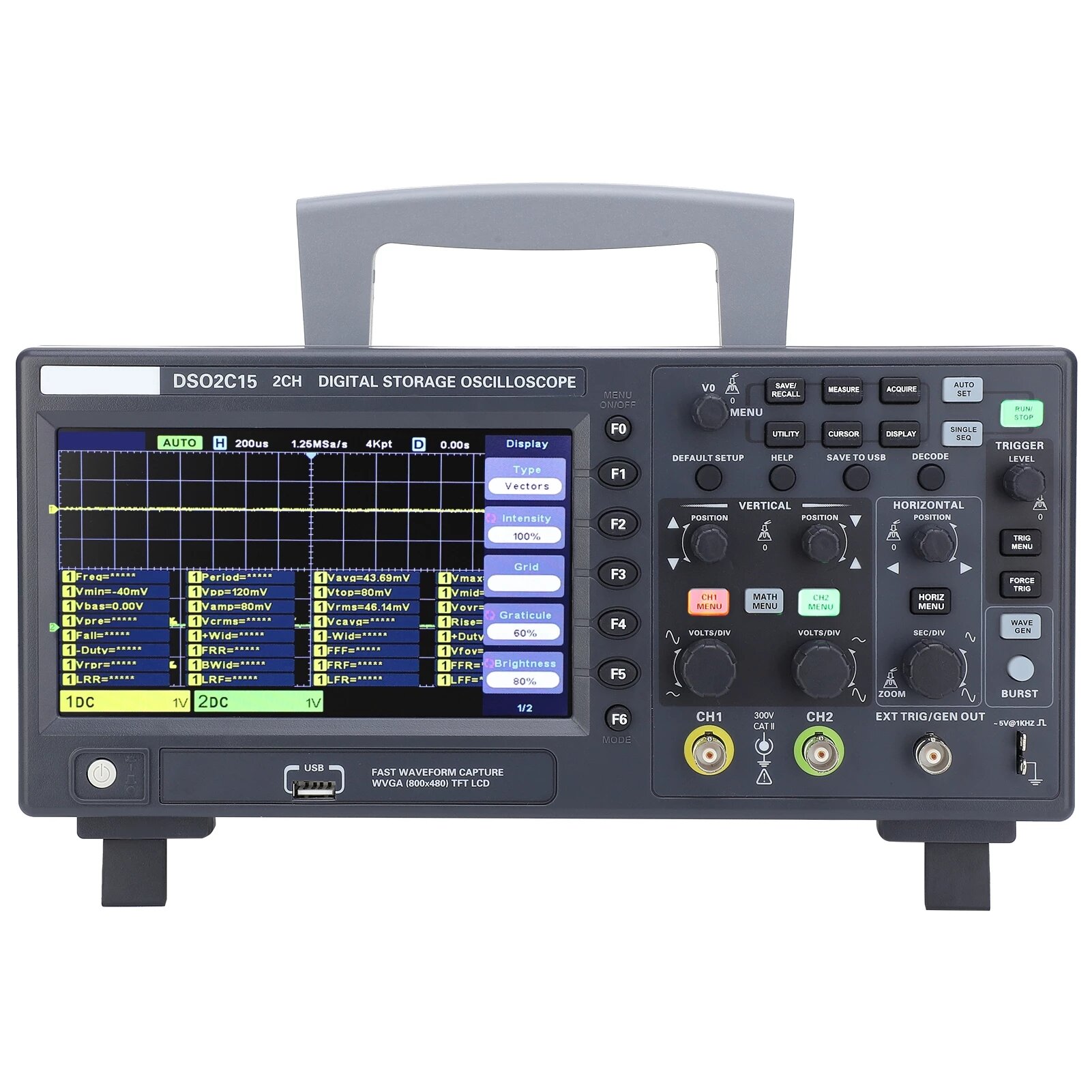

Hantek DSO2C15 150MHz 1GSa/s Sampling Rate Dual-Channel Digital Storage Oscilloscope

4.4
★★★★★
5
$279.99 /$341.59
  • Direct purchase from the factory

    • *Name:

    • *Email:

    • *Phone:

    • *Quantity:

    • *Content:

    • Attachment:

      Supports JPG, JPEG, PNG, PDF, EXCEL, WORD, RAR, ZIP, 7z formats

    $279.99 /$341.59
    -+

    Bitannee Nagaa Mirkanaa'e

    Kennaa Bilisummaa
    Kennaa bilisummaa bitannoo hunda wajji
    Ijaarsa Geessuu
    Geessuu sadarkaa bilisummaa bitannoo $9.9 ol irratti
    Ijaarsa Deebii
    Deebiin kennaa guyyaa 40 olitti kennaa argateetti fudhata. Kennaa filatamaa deebii ykn jijjiiramaa hin taane. Kennaa kaardii kennaa elektronii wajjiin bitame jijjiiramaa qofa; deebiin hin fudhatamu.

    Kennaa Bilisummaa

    Baga Nagaan Dhufte Roymall, website kee kennaa department store gaarii bitachuuf. Deeggarsa kee guddaa nuu kennameef galatoomi. Kennaa bilisummaa bitannoo kee wajjiin kennina. Yeroo nuu wajji bitattu, kennaa gaarii argachuufi kennaa bilisummaa argattu. Kennaa filatamaa argachuuf website keenya daawwachuu fi bitannoo kee gochuu dandeessu.

    Ijaarsa Geessuu

    Kennaa kee guyyaa 2 olitti geessina. Yeroo guyyaa Shanbataa, Dilbataa ykn ayyaanaa bitatte, guyyaa 2 olitti geessina. Guyyaa 5-7 olitti geessina (Dilbataa hanga Jimaata) yeroo flight delay ykn sababa biraa hin jiru. Sababaa geessuu keenya addunyaa hunda keessatti, yeroo geessuu bakka keetti hunda.

    1. Ijaarsa Deebii fi Jijjiiramaa

    Kennaa qofa roymall.com irraa bitame fudhanna. Yoo bitatte distributor ykn retailer biraa, nuu hin deebifamtu. Kennaa bilisummaa ykn jijjiiramaa hin fudhatu. Kennaa kee deebisuuf, kan hin fayyadamne fi akka argatte ta'uu qaba. Akkasumas kan pakii jalqabaa keessatti ta'uu qaba.Yeroo deebii argatte, pakii kee post office ykn courier biraa dhiisi.Deebii ykn jijjiirama guyyaa 3-5 olitti xumurna. Deebiin kaardii bitannoo keessan irratti deebifama.Kennaa filatamaa, guddina filatamaa, halluu filatamaa ykn maxxansi filatamaa hin deebifamu.Yoo gargaarsa barbaaddu, nuu qunnamtii. service@roymall.com ykn Whatsapp: +8619359849471

    2. Ijaarsa Deebii

    Deebii guutuu ykn 100% store credit argattu. Deebiin kaardii bitannoo keessan irratti deebifama. Tajaajila geessuu fi kaffaltii hin deebifamu. Tajaajila geessuu dabalataa yeroo pakii dhiyaate hin deebifamu. Isin kaffaltii kana kaffaltu, nutis hin deebifnu, yoo bitannoo deebi'e nuu wajjiin.Yeroo kennaa deebii argine, email ergina. Deebii ykn jijjiirama keessan mirkanaa'uu ykn mirkanaa'uu diduu keessan beeksisna.Yoo rakkoo deebii qabdu, nuu qunnamtii. service@roymall.com ykn Whatsapp: +8619359849471
    Note: The model is of DSO2C15 .

    Feature:

    1) 2 channels, both are respectively controlled by independent knobes;
    2) 150MHZ analog channel bandwidth;
    3) 1 GSa/s real-time sample rate;
    4) 8M memory depth;
    5) Vertical range 2mV/div ~ 10V/div;
    6) Vertical resolution : 8bit;
    7) Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC;
    8) CAN decode and protocol analysis: RS232/UARTu3001I2Cu3001SPIu3001CANu3001LIN
    9) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;
    10) 5 bits digital voltage meter and 6 bits hardware frequency indicator function;
    11) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;
    12) 2 sets of digital voltmeter;
    13) Support threshold testing, free measurements within the screen;
    14) Abundant SCPI remote command control;
    15) Many external interface: USB Host/Device.

    Product Model(NOTE:Click on the model to reach the purchase link of the corresponding model) :


    Model

    Channels

    		Bandwidth
    		Sampling Rate
    		Storage Depth
    		Signal Source (AWG)
    >>DSO2C10<<

    		2CH

    100MHz

    		1GSa/S8M/

    >>DSO2C15<<

    		2CH150MHz1GSa/S
    		8M
    		/

    >>DSO2D10<<

    		2CH+1CH100MHz1GSa/S
    		8M
    		1CH

    >>DSO2D15<<

    		2CH+1CH
    		150MHz1GSa/S
    		8M
    		1CH

    >>Please Click Here to Download the English User Manual<<

    >>Click to Download DSO2000 Software<<


    Specifications:

    Model: DSO2C15
    Channel: 2 CH
    Bandwidth: 150MHz
    Sample rate: 1GSa/S
    Memory depth: 8M
    AFG: Without

    Parameters

    ModelDSO2D15DSO2D10DSO2C15DSO2C10
    Bandwidth150MHz100MHz150MHz100MHz
    Oscilloscope channels2CH2CH2CH2CH
    Waveform generator1CH1CH - -
    Oscilloscope
    Sample rate1GSa/s (single channel) 500MSa/s (two channels)
    Acquisition
    SamplingSample data
    Peak-to-peak valueDisplay high frequency and random burr
    AverageAverage waveform, times: 4, 8, 16, 32, 64, 128
    High resolutionUp to 12bit
    Input
    Input couplingDC, AC, GND
    Input impedance1Mu03a9±2% u201620pF±3pF
    Probe attenuation factor1X, 10X, 100X, 1000X
    Voltage classes300V CAT II
    Maximum input voltage300VRMS (10X)
    Horizontal
    Waveform interpolation(sin x)/x
    Maximum record lengthSingle channel maximum 8M
    Two channels maximum 4M
    Horizontal scale range2ns/div~100s/div 1, 2, 5 step by step
    Time base modeY-T, X-Y, Roll
    Zero offsets±0.5 divu00d7minimum time base gear
    Sample Rate and Delay Time Accuracy±25ppm
    Clock driftingu2264±5 ppm/year
    Increment Time Measurement Accuracysingle, ""acquisition"" mode
    (Full Bandwidth)±uff081 sample interval+100ppmu00d7reading+0.6nsuff09
    uff1e16 times averages
    ±uff081 sample interval+100ppmu00d7reading+0.4nsuff09
    Sample interval=sec/divu00f7200
    Sample Rate and Delay Time Accuracy±50ppmuff08at any interval greater than 1msuff09
    Vertical
    ModelDSO2D15DSO2D10DSO2C15DSO2C10
    Bandwidth150MHz100MHz150MHz100MHz
    Rising time in BNC position (typical)2.3ns3.5ns2.3ns3.5ns
    Vertical resolution8 bits resolution, each channel samples simultaneously
    Vertical sensitivity2mV/div to 10V/div
    Offsets range2mV/div to 20mV/div, ±100mV; 50mV/div to 200mV/div, ±1V;
    500mV/div to 2V/div, ±10V; 5V/div to 10V/div, ±50V
    Mathematical operation+, -, u00d7, u00f7, FFT
    FFTWindow: Rectangular, Hanning, Hamming, Brackman, Bartlett, flat top window
    Bandwidth Limit20MHz
    Bass responseuff08-3dbuff09In BNC position u2264 10Hz
    Vertical gain accuracyIn ""normal"" or ""average"" acquisition mode, the accuracy of 10V/div to 10mV/div is ±3%;
    In ""normal"" or ""average"" acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4%
    DC offsets accuracyPaypal Waliin Bituu
