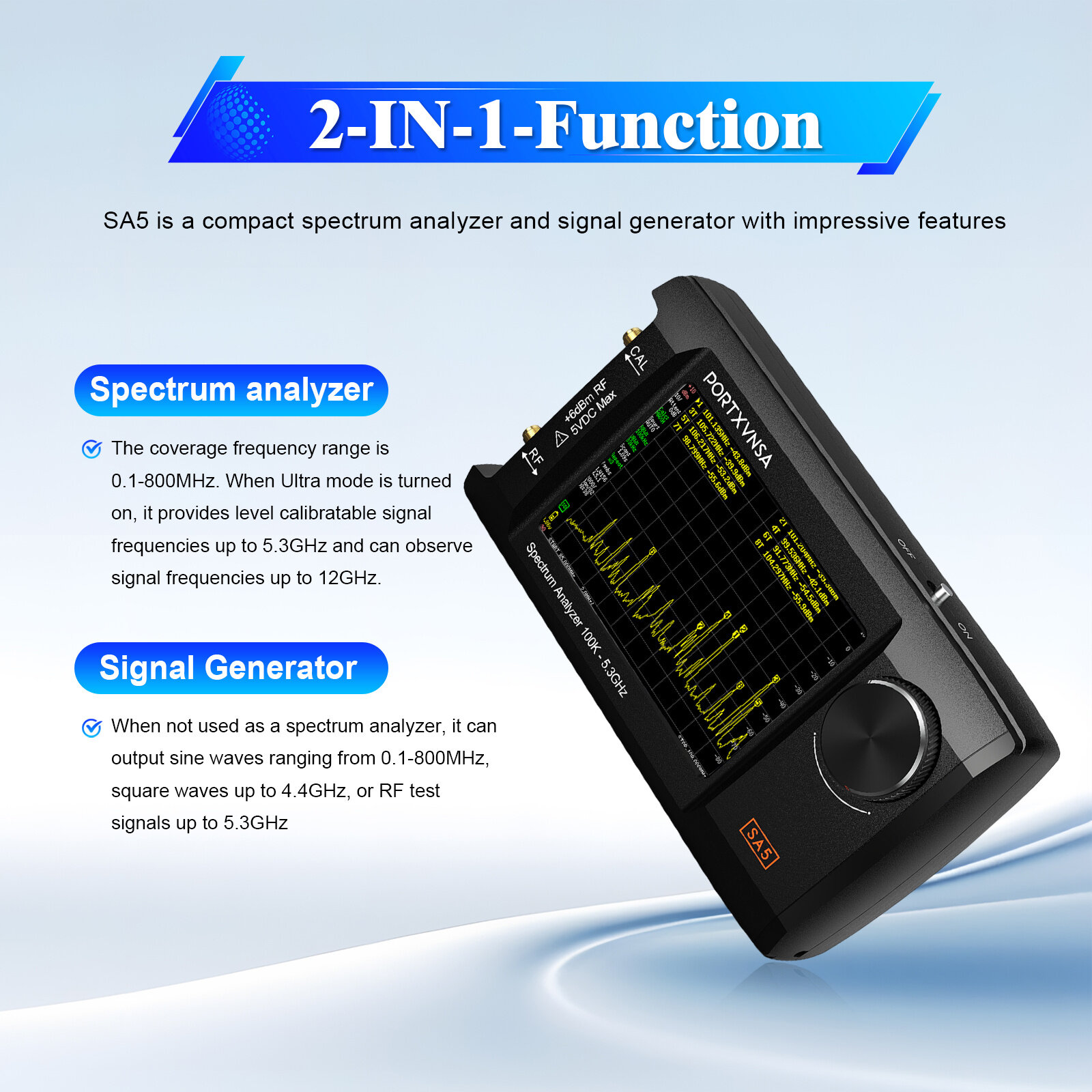

SA5 4 Inch Display Wide Frequency Range 100kHz to 6GHz RF Analyzer 5000mAh Battery Optional 32GB MicroSD High Precision Versatile Scanning
Direct purchase from the factory
Bitannee Nagaa Mirkanaa'e
Kennaa Bilisummaa
Ijaarsa Geessuu
Ijaarsa DeebiiKennaa Bilisummaa
Baga Nagaan Dhufte Roymall, website kee kennaa department store gaarii bitachuuf. Deeggarsa kee guddaa nuu kennameef galatoomi. Kennaa bilisummaa bitannoo kee wajjiin kennina. Yeroo nuu wajji bitattu, kennaa gaarii argachuufi kennaa bilisummaa argattu. Kennaa filatamaa argachuuf website keenya daawwachuu fi bitannoo kee gochuu dandeessu.Ijaarsa Geessuu
Kennaa kee guyyaa 2 olitti geessina. Yeroo guyyaa Shanbataa, Dilbataa ykn ayyaanaa bitatte, guyyaa 2 olitti geessina. Guyyaa 5-7 olitti geessina (Dilbataa hanga Jimaata) yeroo flight delay ykn sababa biraa hin jiru. Sababaa geessuu keenya addunyaa hunda keessatti, yeroo geessuu bakka keetti hunda.1. Ijaarsa Deebii fi Jijjiiramaa
Kennaa qofa roymall.com irraa bitame fudhanna. Yoo bitatte distributor ykn retailer biraa, nuu hin deebifamtu. Kennaa bilisummaa ykn jijjiiramaa hin fudhatu. Kennaa kee deebisuuf, kan hin fayyadamne fi akka argatte ta'uu qaba. Akkasumas kan pakii jalqabaa keessatti ta'uu qaba.Yeroo deebii argatte, pakii kee post office ykn courier biraa dhiisi.Deebii ykn jijjiirama guyyaa 3-5 olitti xumurna. Deebiin kaardii bitannoo keessan irratti deebifama.Kennaa filatamaa, guddina filatamaa, halluu filatamaa ykn maxxansi filatamaa hin deebifamu.Yoo gargaarsa barbaaddu, nuu qunnamtii. service@roymall.com ykn Whatsapp: +86193598494712. Ijaarsa Deebii
Deebii guutuu ykn 100% store credit argattu. Deebiin kaardii bitannoo keessan irratti deebifama. Tajaajila geessuu fi kaffaltii hin deebifamu. Tajaajila geessuu dabalataa yeroo pakii dhiyaate hin deebifamu. Isin kaffaltii kana kaffaltu, nutis hin deebifnu, yoo bitannoo deebi'e nuu wajjiin.Yeroo kennaa deebii argine, email ergina. Deebii ykn jijjiirama keessan mirkanaa'uu ykn mirkanaa'uu diduu keessan beeksisna.Yoo rakkoo deebii qabdu, nuu qunnamtii. service@roymall.com ykn Whatsapp: +8619359849471Please click here to download the instruction manual
Specifications:
Input Frequency Range: 100kHz to 800MHz (normal mode), up to 6GHz (ULTRA mode)
Input Impedance: 50 ohm (attenuation ≥ 10dB)
Input Attenuation: 0dB to 31dB (1dB steps when LNA inactive)
Maximum DC Input: ±5V DC
Absolute Maximum Input Level: +6dBm (0dB internal attenuation)
Absolute Maximum Short-Term Peak Input Power: +20dBm (30dB internal attenuation)
Suggested Maximum Input Power: 0dBm (internal attenuation in automatic mode)
Best Measurement Input Power: Below -25dBm
Input Intercept Point (IIP3): +15dBm (0dB internal attenuation)
1dB Compression Point: -1dBm (0dB internal attenuation)

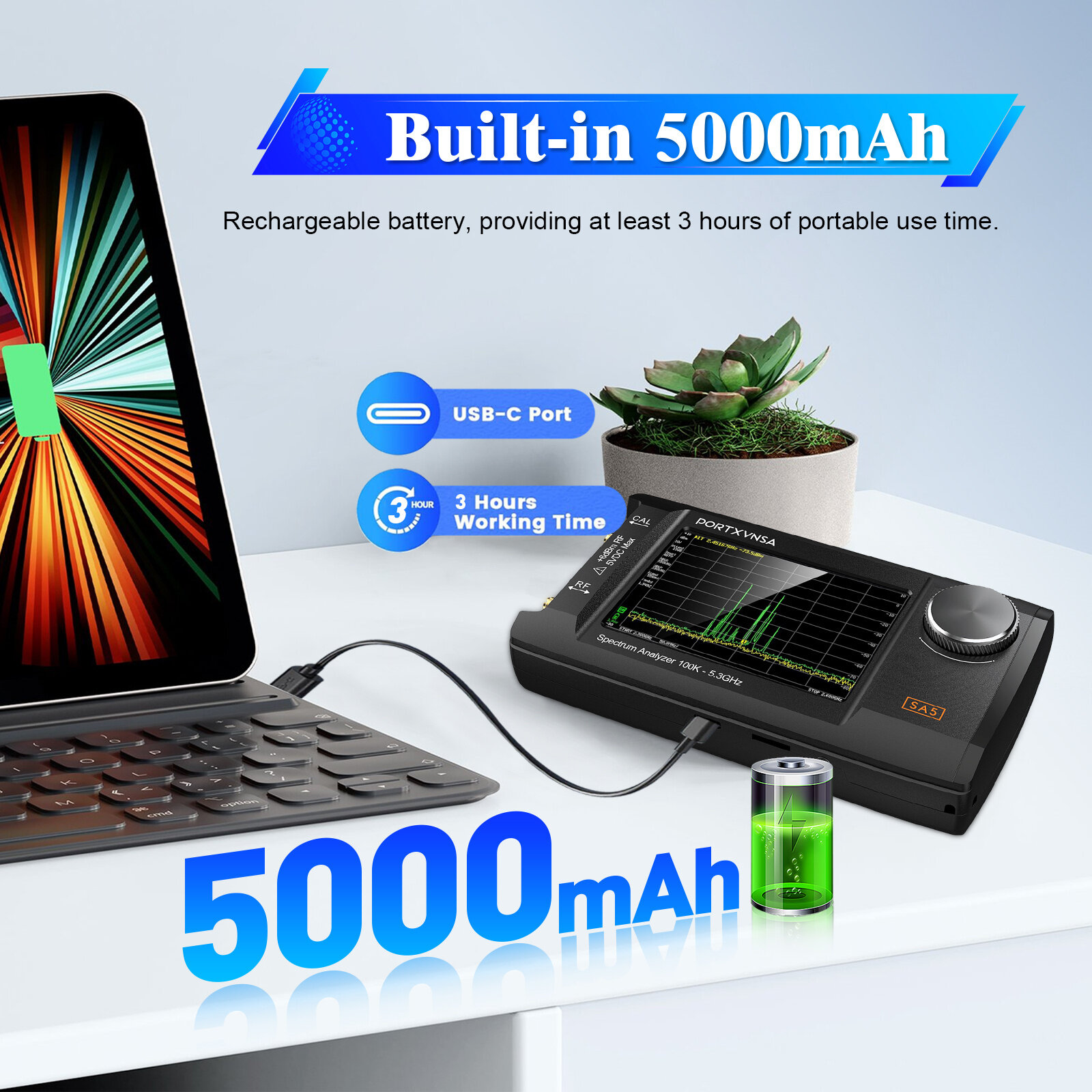

Battery Capacity: 5000mAh

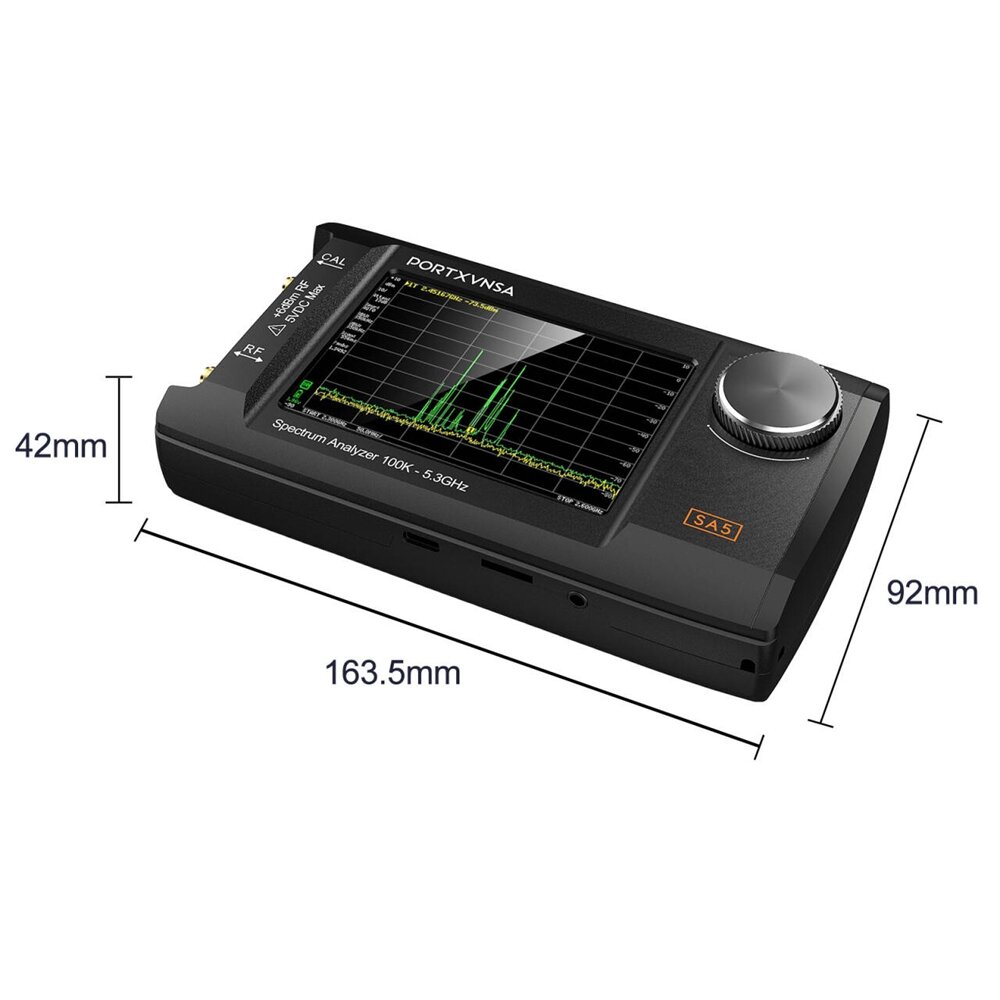

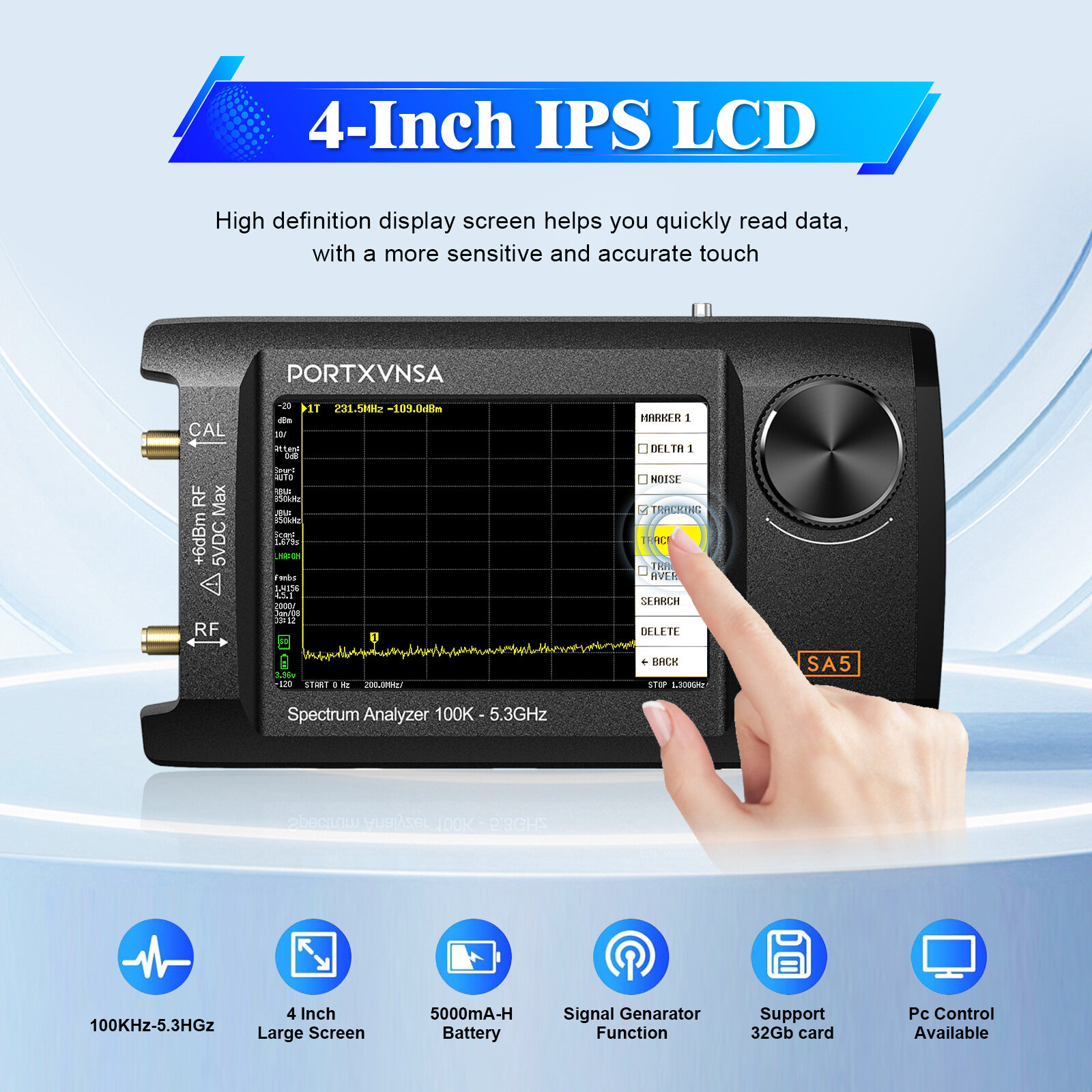

Display Screen: 4 inch
Optional Type:
Type A: Without 32GB MicroSD Card

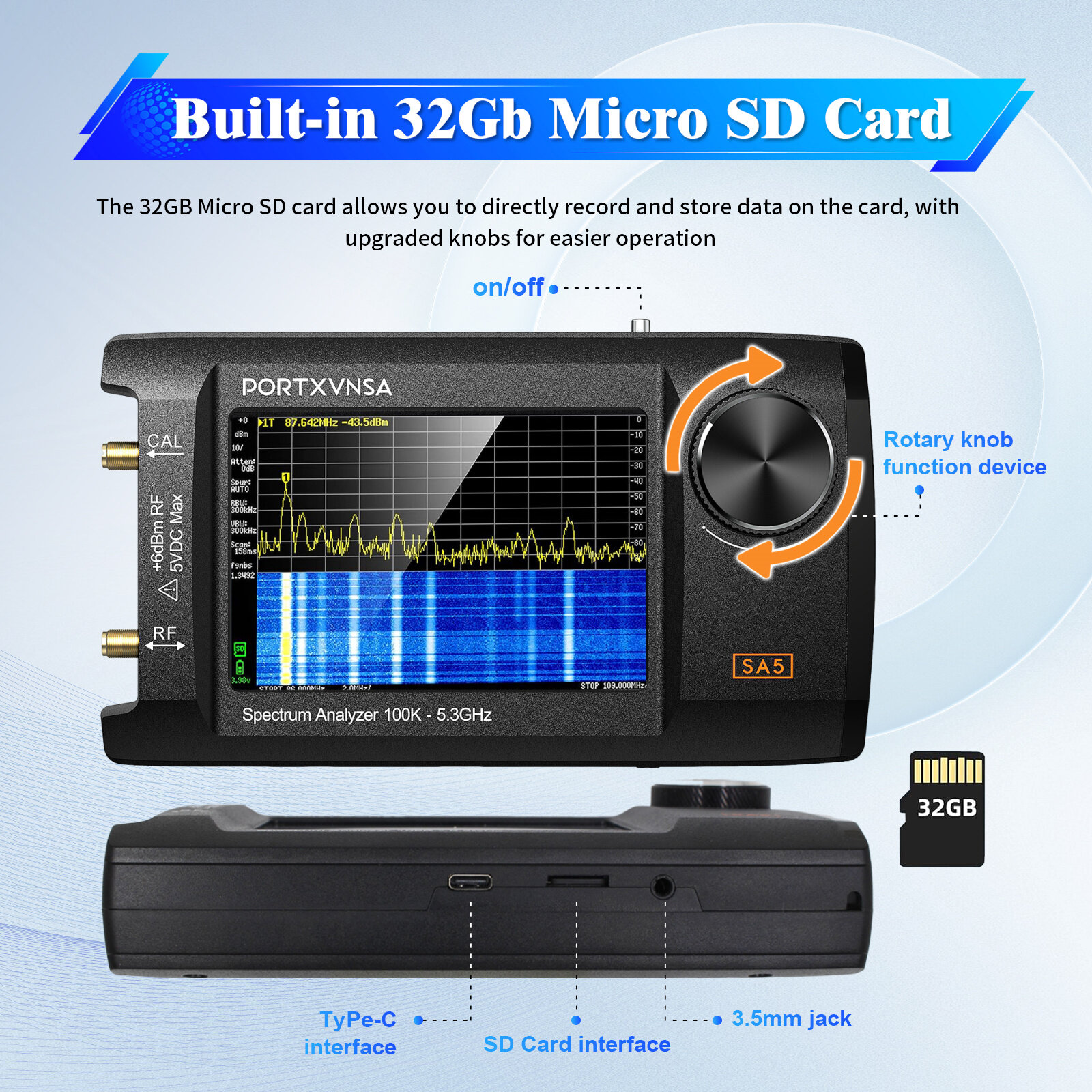

Type B: With 32GB MicroSD Card
Features:
Wide Frequency Range: Covers 100kHz to 800MHz in normal mode, extending up to 6GHz with ULTRA mode, ensuring versatility in applications.

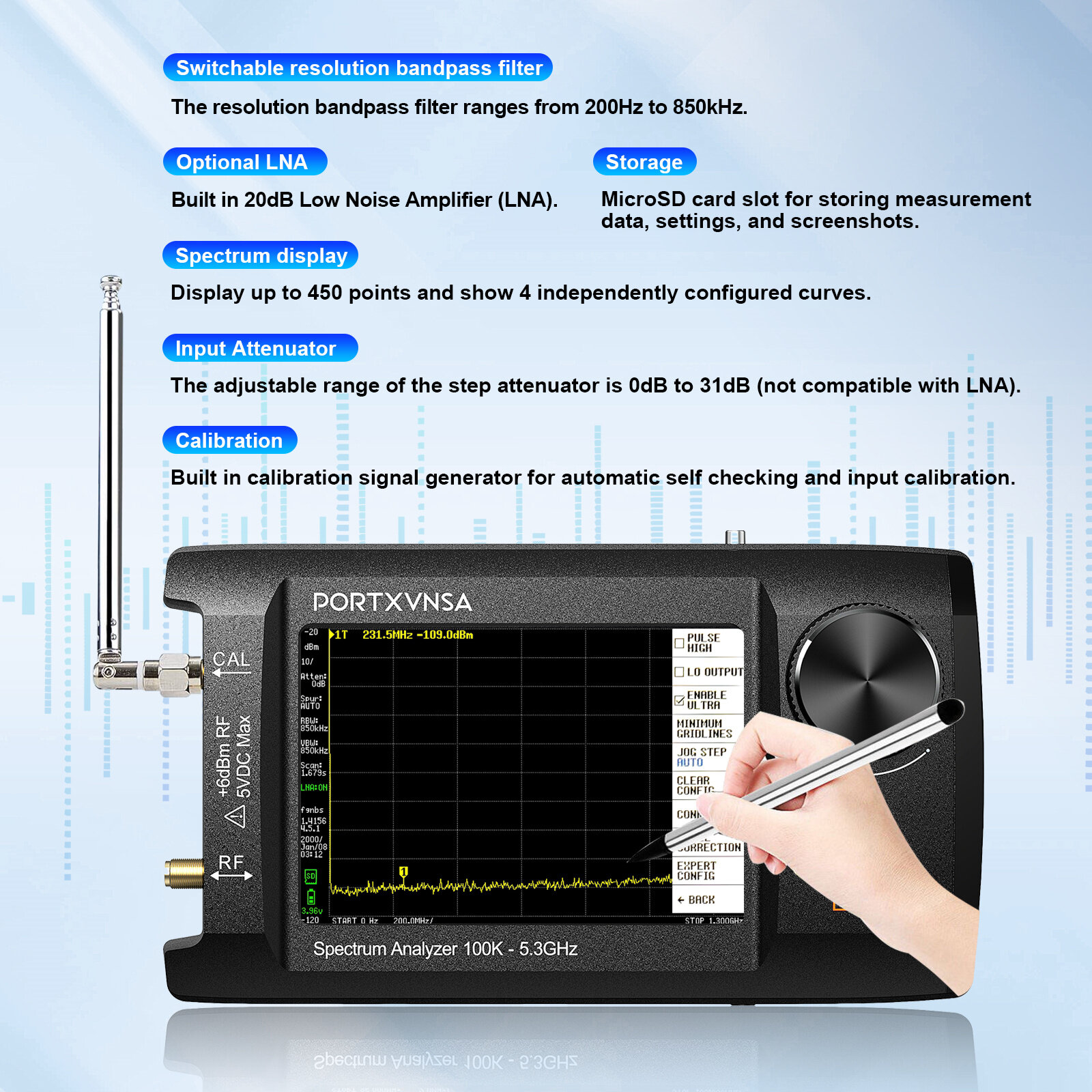

High Precision Attenuation: Customizable manual and automatic input attenuation from 0dB to 31dB in 1dB steps, providing accuracy and control.
Enhanced Sensitivity: Built-in 20dB LNA with a noise figure of 5dB, improving signal test and clarity.
Robust Phase Noise Performance: Features low phase noise of -108dB/Hz at 100kHzoffset, ensuring signal integrity and reliability.
Comprehensive Scanning Capabilities: Supports over 1000 points/second scanning speed with high on-screen resolution up to 450 measurement points.

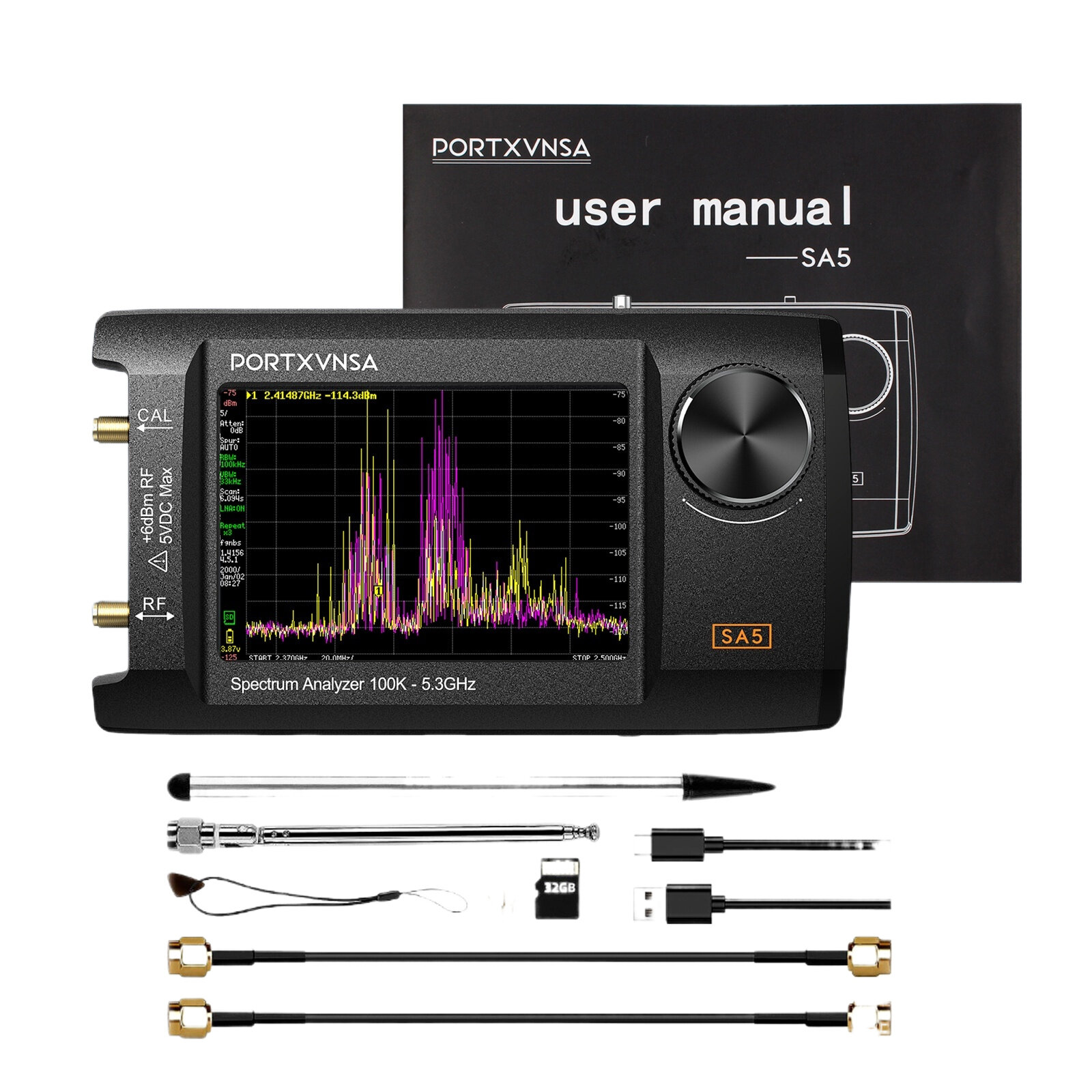

Package Included:
1 x SA5 Instrument
2 x 30cm RG405 SMAJB2/SMAJB2 RF Cables
1 x SMA-SMA Barrel Connector
1 x Antenna With SMA Connector
1 x Touch Pen
1 x Lanyard Touch Sheet
1 x User Manual
1 x USB Cable
1 x Carrying Case
1 x 32GB MicroSD Card (insert into consoleuff09u3010Only Type B Haveu3011
